Bradley-Terry models

SDS 355

Prof. Baumer

October 20, 2025

Paired comparison models

Bradley and Terry (1952)

Let \(A_i, A_j\) be teams. Then

\[ p_{ij} = \Pr{ \left( A_i \text{ defeats } A_j \right) } = \frac{\lambda_i}{\lambda_i + \lambda_j} \] for unobserved team strengths \(\lambda_i, \lambda_j > 0\).

Use logistic distribution

Set \(\beta_i = \ln{\lambda_i}\). Then,

\[ p_{ij} = \frac{1}{1 + e^{-(\beta_i-\beta_j)}} = F(\beta_i - \beta_j), \] where \(F(x)\) is the CDF of the logistic distribution with \(\mu = 0, s = 1\).

Tip

Setting \(s = 400\) yields the Elo rating system! (Elo 1978)

Convert to odds

Form the odds, then the log-odds:

\[\begin{align*} \frac{p_{ij}}{1 - p_{ij}} &= e^{(\beta_i - \beta_j)} \\ \ln{\left( \frac{p_{ij}}{1 - p_{ij}} \right)} &= \beta_i - \beta_j \end{align*}\]

Setup design matrix

But this is the setup for logistic regression:

\[\begin{align*} \ln{ \left( \frac{p_{ij}}{1 - p_{ij}} \right) } &= \beta_i - \beta_j \\ &= \begin{pmatrix} 0 & 0 & 1 & \cdots & -1 & \cdots & 0 \end{pmatrix} \begin{pmatrix} \beta_1 \\ \vdots \\ \beta_n \end{pmatrix} \\ &= \vec{X} \cdot \vec{\beta} \end{align*}\]

`BradleyTerry2`

library(tidyverse)
library(BradleyTerry2)

Example: Men’s tennis

Head-to-head matchups

tennis <- tibble(
  Djokovic = c(NA, 9, 14, 9, 4),
  Federer = c(6, NA, 5, 5, 7),
  Murray = c(3, 0, NA, 2, 2),
  Nadal = c(2, 1, 4, NA, 4),
  Wawrinka = c(3, 2, 2, 3, NA)
) |>
  t() |>
  BradleyTerry2::countsToBinomial()
tennis

    player1  player2 win1 win2
1  Djokovic  Federer    9    6
2  Djokovic   Murray   14    3
3  Djokovic    Nadal    9    2
4  Djokovic Wawrinka    4    3
5   Federer   Murray    5    0
6   Federer    Nadal    5    1
7   Federer Wawrinka    7    2
8    Murray    Nadal    2    4
9    Murray Wawrinka    2    2
10    Nadal Wawrinka    4    3

Fit the model

btm_tennis <- BradleyTerry2::BTm(cbind(win1, win2), player1, player2, data = tennis)
btm_tennis

Bradley Terry model fit by glm.fit

Call:  BradleyTerry2::BTm(outcome = cbind(win1, win2), player1 = player1,
    player2 = player2, data = tennis)

Coefficients:
 ..Federer    ..Murray     ..Nadal  ..Wawrinka
  -0.04034    -1.74464    -1.23797    -1.17612

Degrees of Freedom: 10 Total (i.e. Null);  6 Residual
Null Deviance:      26.9
Residual Deviance: 4.396    AIC: 34.04

Recover abilities

players <- btm_tennis |>
  update(refcat = "Wawrinka") |>
  BradleyTerry2::BTabilities() |>
  as_tibble(rownames = "Player") |>
  arrange(desc(ability))
players

# A tibble: 5 × 3
  Player   ability     s.e.
  <chr>    <BTabilts>  <BTabilts>
1 Djokovic  1.17612172 0.4995230
2 Federer   1.13578408 0.5109457
3 Wawrinka  0.00000000 0.0000000
4 Nadal    -0.06185141 0.5148698
5 Murray   -0.56851913 0.5683333

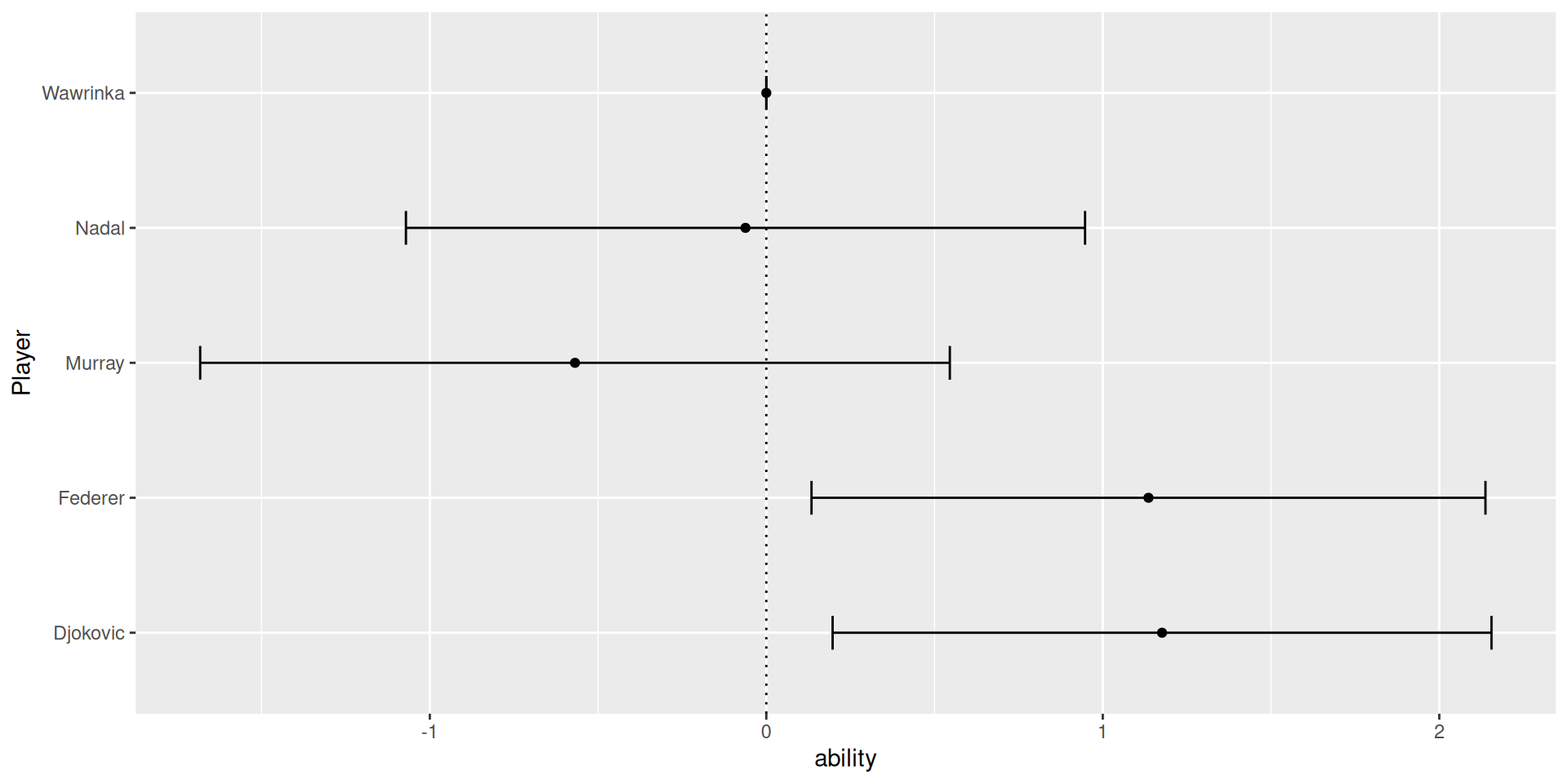

Visualize abilities

ggplot(players, aes(y = Player, x = ability)) +
  geom_vline(xintercept = 0, linetype = 3) +
  geom_point(aes(x = ability)) +
  geom_errorbarh(aes(xmin = ability - 1.96*s.e., xmax = ability + 1.96*s.e.), height = 0.25)

Example: MLB teams

Get Retrosheet data

library(retrosheet)
games <- get_retrosheet("game", 2024)
games |>
  head()

        Date DblHdr Day VisTm VisTmLg VisTmGNum HmTm HmTmLg HmTmGNum VisRuns
1 2024-03-20      0 Wed   LAN      NL         1  SDN     NL        1       5
2 2024-03-21      0 Thu   SDN      NL         2  LAN     NL        2      15
3 2024-03-28      0 Thu   COL      NL         1  ARI     NL        1       1
4 2024-03-28      0 Thu   WAS      NL         1  CIN     NL        1       2
5 2024-03-28      0 Thu   SLN      NL         1  LAN     NL        3       1
6 2024-03-28      0 Thu   PIT      NL         1  MIA     NL        1       6
  HmRuns NumOuts DayNight Completion Forfeit Protest ParkID Attendance Duration
1      2      54        N       <NA>      NA      NA  SEO01      15952      185
2     11      54        N       <NA>      NA      NA  SEO01      15928      222
3     16      51        N       <NA>      NA      NA  PHO01      49011      157
4      8      51        D       <NA>      NA      NA  CIN09      44030      138
5      7      51        D       <NA>      NA      NA  LOS03      52667      143
6      5      72        D       <NA>      NA      NA  MIA02      32564      204
       VisLine       HmLine VisAB VisH VisD VisT VisHR VisRBI VisSH VisSF
1    000100040    001100000    33    7    0    0     0      4     0     2
2    504011103    114020120    43   18    3    1     1     14     0     2
3    010000000 20(14)00000x    30    4    2    0     0      1     0     0
4    000000200    03400001x    32    6    0    0     1      2     0     0
5    000100000    20300110x    31    3    0    0     1      1     0     0
6 002000210001 022010000000    44    9    2    0     3      6     0     0
  VisHBP VisBB VisIBB VisK VisSB VisCS VisGDP VisCI VisLOB VisPs VisER VisTER
1      1     9      0    7     1     0      0     0     13     5     2      2
2      2     6      0    8     1     0      1     0     11     6    11     11
3      1     3      0    6     0     0      1     0      6     5    16     16
4      0     0      0    9     0     0      0     0      3     5     8      8
5      0     1      0    6     1     0      0     0      4     4     7      7
6      0     8      2   17     0     0      0     0     13     7     4      4
  VisWP VisBalks VisPO VisA VisE VisPassed VisDB VisTP HmAB HmH HmD HmT HmHR
1     1        0    27   11    0         0     1     0   30   4   0   0    0
2     1        0    27   10    0         0     0     0   42  16   3   0    1
3     0        0    24    8    0         0     1     0   40  18   3   0    1
4     0        0    24    5    0         0     0     0   34  10   3   0    2
5     0        0    24    7    0         0     1     0   31  10   2   0    2
6     0        0    36   20    1         0     3     0   41   8   2   0    0
  HmRBI HmSH HmSF HmHBP HmBB HmIBB HmK HmSB HmCS HmGDP HmCI HmLOB HmPs HmER
1     1    0    0     0    4     0   6    0    0     1    0     5    8    3
2    11    0    1     1    6     0   9    0    0     0    0    12    7   14
3    16    0    1     0    3     0   9    0    0     1    0     4    5    1
4     8    0    0     1    2     0   9    3    0     0    0     5    3    2
5     7    0    1     0    4     0  10    0    0     1    0     5    2    1
6     5    0    1     2    4     2   7    1    0     3    0    10    7    5
  HmTER HmWP HmBalks HmPO HmA HmE HmPass HmDB HmTP   UmpHID          UmpHNm
1     3    1       0   27   8   2      0    1    0 barkl901 Lance Barksdale
2    14    2       0   27   7   2      0    1    0 fleta901   Andy Fletcher
3     1    0       0   27  14   0      0    1    0 belld901     Dan Bellino
4     2    0       0   27   8   1      0    0    0 iassd901    Dan Iassogna
5     1    0       0   27   2   1      0    0    0 porta901     Alan Porter
6     5    0       0   36  14   1      0    0    0 guccc901  Chris Guccione
   Ump1BID         Ump1BNm  Ump2BID         Ump2BNm  Ump3BID         Ump3BNm
1 torrc901   Carlos Torres viscj901 Jansen Visconti rehaj901   Jeremie Rehak
2 viscj901 Jansen Visconti rehaj901   Jeremie Rehak barkl901 Lance Barksdale
3 cuzzp901      Phil Cuzzi randt901   Tony Randazzo tosia901       Alex Tosi
4 buckc901      CB Bucknor becka901       Adam Beck may-b901         Ben May
5 blakr901    Ryan Blakney tomln901  Nate Tomlinson barbs901     Sean Barber
6 knigb901    Brian Knight morag901    Gabe Morales addir901    Ryan Additon
  UmpLFID UmpLFNm UmpRFID UmpRFNm VisMgrID      VisMgrNm  HmMgrID
1      NA  (none)      NA  (none) robed001  Dave Roberts shilm801
2      NA  (none)      NA  (none) shilm801   Mike Shildt robed001
3      NA  (none)      NA  (none) blacb001   Buddy Black lovut001
4      NA  (none)      NA  (none) martd002 Dave Martinez belld002
5      NA  (none)      NA  (none) marmo801 Oliver Marmol robed001
6      NA  (none)      NA  (none) sheld801 Derek Shelton schus001
         HmMgrNm   WinPID         WinPNm      PID              PNAme  SavePID
1    Mike Shildt hudsd001  Daniel Hudson britj003        Jhony Brito phile001
2   Dave Roberts kingm002   Michael King yamay001 Yoshinobu Yamamoto suarr002
3   Tony Lovullo gallz001     Zac Gallen freek001      Kyle Freeland     <NA>
4     David Bell montf001 Frankie Montas grayj004        Josiah Gray     <NA>
5   Dave Roberts glast001  Tyler Glasnow mikom001      Miles Mikolas yarbr001
6 Skip Schumaker ortil003     Luis Ortiz crond001      Declan Cronin hernj005
         SavePNm GWinRBIID        GWinRBINm VisStPchID    VisStPchNm HmStPchID
1  Evan Phillips      <NA>           (none)   glast001 Tyler Glasnow  darvy001
2  Robert Suarez  cronj001 Jake Cronenworth   musgj001  Joe Musgrove  yamay001
3         (none)  gurrl001  Lourdes Gurriel   freek001 Kyle Freeland  gallz001
4         (none)  stees001    Spencer Steer   grayj004   Josiah Gray  montf001
5 Ryan Yarbrough  freef001  Freddie Freeman   mikom001 Miles Mikolas  glast001
6 Jose Hernandez  trioj001     Jared Triolo   kellm003  Mitch Keller  luzaj001
           HmStPchNm VisBat1ID        VisBat1Nm VisBat1Pos VisBat2ID
1         Yu Darvish  bettm001     Mookie Betts          6  ohtas001
2 Yoshinobu Yamamoto  bogax001  Xander Bogaerts          4  tatif002
3         Zac Gallen  blacc001 Charlie Blackmon          9  bryak001
4     Frankie Montas  abrac001     C. J. Abrams          6  thoml002
5      Tyler Glasnow  donob001  Brendan Donovan          7  goldp001
6      Jesus Luzardo  joe-c001       Connor Joe          9  reynb001
         VisBat2Nm VisBat2Pos VisBat3ID        VisBat3Nm VisBat3Pos VisBat4ID
1    Shohei Ohtani         10  freef001  Freddie Freeman          3  smitw003
2   Fernando Tatis          9  cronj001 Jake Cronenworth          3  machm001
3      Kris Bryant          3  jonen002      Nolan Jones          7  rodgb002
4      Lane Thomas          9  winkj002     Jesse Winker          7  menej001
5 Paul Goldschmidt          3  gormn001     Nolan Gorman          4  arenn001
6   Bryan Reynolds          7  hayek001   Ke'Bryan Hayes          5  mccua001
         VisBat4Nm VisBat4Pos VisBat5ID         VisBat5Nm VisBat5Pos VisBat6ID
1       Will Smith          2  muncm001         Max Muncy          5  hernt002
2    Manny Machado         10  kim-h002      Ha-Seong Kim          6  profj001
3  Brendan Rodgers          4  mcmar001      Ryan McMahon          5  diaze005
4     Joey Meneses         10  gallj002        Joey Gallo          3  ruizk001
5    Nolan Arenado          5  contw001 Willson Contreras          2  burla001
6 Andrew McCutchen         10  davih001       Henry Davis          2  cruzo001
          VisBat6Nm VisBat6Pos VisBat7ID      VisBat7Nm VisBat7Pos VisBat8ID
1 Teoscar Hernandez          7  outmj002   James Outman          8  heywj001
2  Jurickson Profar          7  campl002 Luis Campusano          2  wadet002
3        Elias Diaz          2  tovae001 Ezequiel Tovar          6  monte001
4      Keibert Ruiz          2  rosae001  Eddie Rosario          8  vargi001
5     Alec Burleson         10  walkj003  Jordan Walker          9  scotv001
6        Oneil Cruz          6  trioj001   Jared Triolo          4  tellr001
         VisBat8Nm VisBat8Pos VisBat9ID       VisBat9Nm VisBat9Pos HmBat1ID
1    Jason Heyward          9  lux-g001       Gavin Lux          4 bogax001
2       Tyler Wade          5  merrj002 Jackson Merrill          8 bettm001
3 Elehuris Montero         10  doylb001   Brenton Doyle          8 martk001
4  Ildemaro Vargas          5  garcl006     Luis Garcia          4 indij001
5     Victor Scott          8  winnm001      Masyn Winn          6 bettm001
6     Rowdy Tellez          3  taylm002  Michael Taylor          8 arral001
         HmBat1Nm HmBat1Pos HmBat2ID       HmBat2Nm HmBat2Pos HmBat3ID
1 Xander Bogaerts         4 tatif002 Fernando Tatis         9 cronj001
2    Mookie Betts         6 ohtas001  Shohei Ohtani        10 freef001
3     Ketel Marte         4 carrc005 Corbin Carroll         9 gurrl001
4  Jonathan India         4 bensw001    Will Benson         8 encac001
5    Mookie Betts         6 ohtas001  Shohei Ohtani        10 freef001
6     Luis Arraez         4 bellj005      Josh Bell         3 delab001
                      HmBat3Nm HmBat3Pos HmBat4ID          HmBat4Nm HmBat4Pos
1             Jake Cronenworth         3 machm001     Manny Machado        10
2              Freddie Freeman         3 smitw003        Will Smith         2
3              Lourdes Gurriel         7 walkc002  Christian Walker         3
4 Christian Encarnacion-Strand         3 candj002 Jeimer Candelario         5
5              Freddie Freeman         3 smitw003        Will Smith         2
6             Bryan De La Cruz        10 chisj001     Jazz Chisholm         8
  HmBat5ID       HmBat5Nm HmBat5Pos HmBat6ID          HmBat6Nm HmBat6Pos
1 kim-h002   Ha-Seong Kim         6 profj001  Jurickson Profar         7
2 muncm001      Max Muncy         5 hernt002 Teoscar Hernandez         7
3 moreg001 Gabriel Moreno         2 suare001    Eugenio Suarez         5
4 fralj001    Jake Fraley         9 delae003   Elly De La Cruz         6
5 muncm001      Max Muncy         5 hernt002 Teoscar Hernandez         7
6 burgj001    Jake Burger         5 sancj003     Jesus Sanchez         9
  HmBat7ID        HmBat7Nm HmBat7Pos HmBat8ID      HmBat8Nm HmBat8Pos HmBat9ID
1 campl002  Luis Campusano         2 wadet002    Tyler Wade         5 merrj002
2 outmj002    James Outman         8 heywj001 Jason Heyward         9 lux-g001
3 alexb001 Blaze Alexander        10 thoma004   Alek Thomas         8 perdg001
4 stees001   Spencer Steer         7 martn003  Nick Martini        10 stept001
5 outmj002    James Outman         8 heywj001 Jason Heyward         9 lux-g001
6 andet001    Tim Anderson         6 gordn001   Nick Gordon         7 fortn001
          HmBat9Nm HmBat9Pos Additional Acquisition
1  Jackson Merrill         8       <NA>           Y
2        Gavin Lux         4       <NA>           Y
3  Gerardo Perdomo         6       <NA>           Y
4 Tyler Stephenson         2       <NA>           Y
5        Gavin Lux         4       <NA>           Y
6      Nick Fortes         2       <NA>           Y

Refactor to matchup format

bt_games <- games |>
  group_by(HmTm, VisTm) |>
  summarize(
    home_w = sum(HmRuns > VisRuns),
    away_w = sum(VisRuns > HmRuns),
  ) |>
  mutate(
    HmTm = factor(HmTm),
    VisTm = factor(VisTm, levels = levels(HmTm))
  )
bt_games |>
  head()

# A tibble: 6 × 4
# Groups:   HmTm [1]
  HmTm  VisTm home_w away_w
  <fct> <fct>  <int>  <int>
1 ANA   ATL        1      2
2 ANA   BAL        1      2
3 ANA   BOS        1      2
4 ANA   CHA        2      1
5 ANA   CLE        0      3
6 ANA   COL        1      2

Fit the model

btm_mlb <- BTm(
  outcome = cbind(home_w, away_w),
  player1 = HmTm,
  player2 = VisTm,
  data = bt_games,
  id = "team"
)
btm_mlb

Bradley Terry model fit by glm.fit

Call:  BTm(outcome = cbind(home_w, away_w), player1 = HmTm, player2 = VisTm,
    id = "team", data = bt_games)

Coefficients:
 teamARI   teamATL   teamBAL   teamBOS   teamCHA   teamCHN   teamCIN   teamCLE
 0.70941   0.69153   0.69629   0.46502  -0.58725   0.54370   0.41283   0.70002
 teamCOL   teamDET   teamHOU   teamKCA   teamLAN   teamMIA   teamMIL   teamMIN
 0.04109   0.54163   0.59943   0.54586   0.91875   0.04471   0.78905   0.45173
 teamNYA   teamNYN   teamOAK   teamPHI   teamPIT   teamSDN   teamSEA   teamSFN
 0.77340   0.69053   0.14522   0.82737   0.38860   0.80329   0.51580   0.49374
 teamSLN   teamTBA   teamTEX   teamTOR   teamWAS
 0.55275   0.43825   0.35151   0.30469   0.26591

Degrees of Freedom: 660 Total (i.e. Null);  631 Residual
Null Deviance:      823.3
Residual Deviance: 714.2    AIC: 1704

Wrangle team strengths

strengths <- btm_mlb |>
  BradleyTerry2::BTabilities() |>
  as_tibble(rownames = "teamID") |>
  arrange(desc(ability))
strengths

# A tibble: 30 × 3
   teamID ability    s.e.
   <chr>  <BTabilts> <BTabilts>
 1 LAN    0.9187506  0.2307869
 2 PHI    0.8273696  0.2304666
 3 SDN    0.8032914  0.2300761
 4 MIL    0.7890511  0.2299159
 5 NYA    0.7733974  0.2257321
 6 ARI    0.7094136  0.2294201
 7 CLE    0.7000213  0.2261616
 8 BAL    0.6962859  0.2252221
 9 ATL    0.6915301  0.2294049
10 NYN    0.6905312  0.2293995
# ℹ 20 more rows

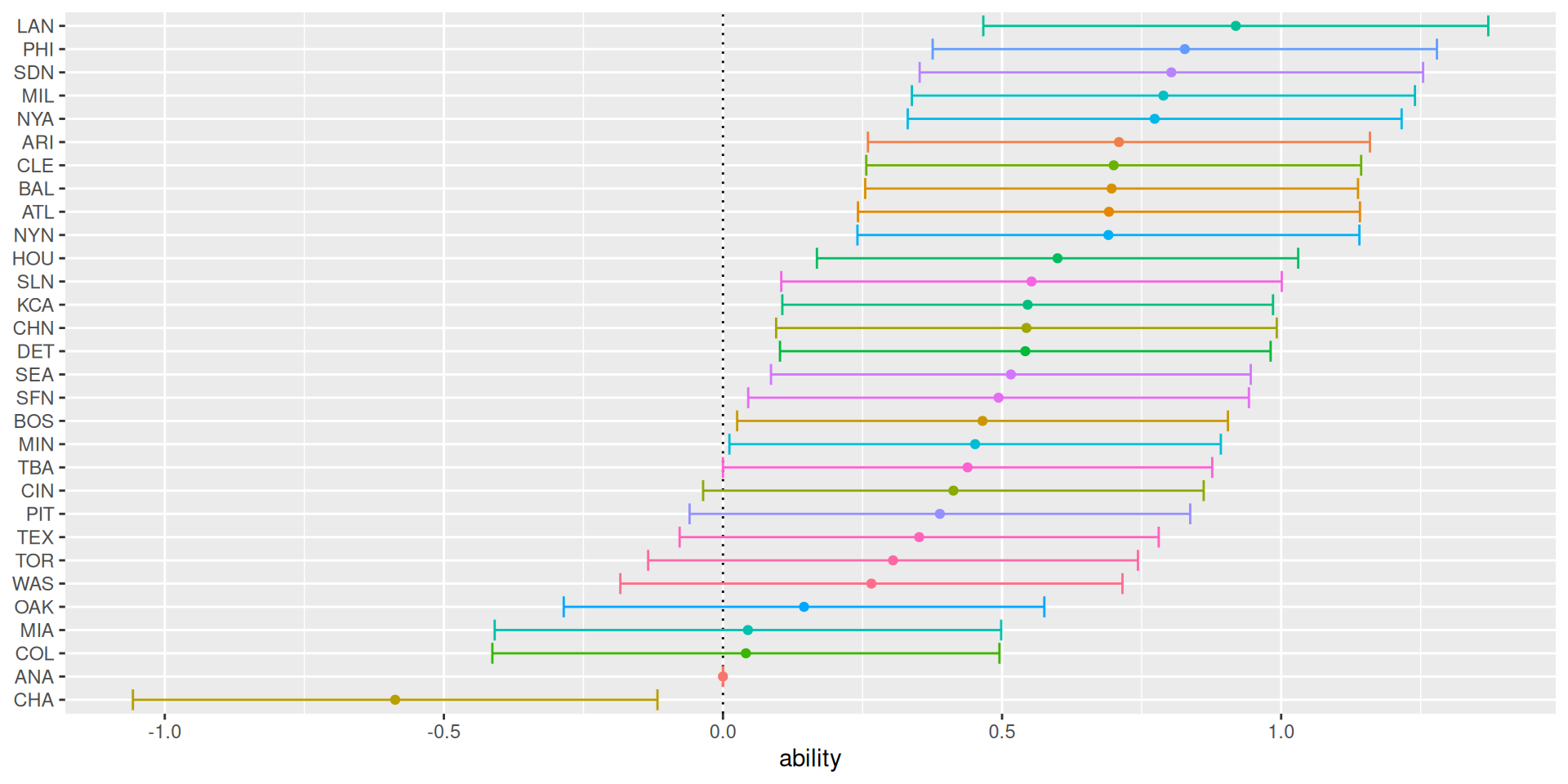

Visualize team strengths

Consolidate team names

# Retrosheet teamIDs
levels(bt_games$HmTm)

 [1] "ANA" "ARI" "ATL" "BAL" "BOS" "CHA" "CHN" "CIN" "CLE" "COL" "DET" "HOU"
[13] "KCA" "LAN" "MIA" "MIL" "MIN" "NYA" "NYN" "OAK" "PHI" "PIT" "SDN" "SEA"
[25] "SFN" "SLN" "TBA" "TEX" "TOR" "WAS"

active_teams <- Lahman::Teams |>
  filter(yearID == 2024) |>
  select(teamIDretro, name) |>
  mutate(name = str_remove(name, " of Anaheim"))
active_teams

   teamIDretro                  name
1          ANA    Los Angeles Angels
2          ARI  Arizona Diamondbacks
3          ATL        Atlanta Braves
4          BAL     Baltimore Orioles
5          BOS        Boston Red Sox
6          CHN          Chicago Cubs
7          CHA     Chicago White Sox
8          CIN       Cincinnati Reds
9          CLE   Cleveland Guardians
10         COL      Colorado Rockies
11         DET        Detroit Tigers
12         MIA         Miami Marlins
13         HOU        Houston Astros
14         KCA    Kansas City Royals
15         LAN   Los Angeles Dodgers
16         MIL     Milwaukee Brewers
17         MIN       Minnesota Twins
18         NYN         New York Mets
19         NYA      New York Yankees
20         OAK     Oakland Athletics
21         PHI Philadelphia Phillies
22         PIT    Pittsburgh Pirates
23         SDN      San Diego Padres
24         SEA      Seattle Mariners
25         SFN  San Francisco Giants
26         SLN   St. Louis Cardinals
27         TBA        Tampa Bay Rays
28         TEX         Texas Rangers
29         TOR     Toronto Blue Jays
30         WAS  Washington Nationals

Match teamIDs to get colors

mlb_colors <- teamcolors::teamcolors |>
  filter(league == "mlb") |>
  mutate(name = ifelse(name == "Cleveland Indians", "Cleveland Guardians", name)) |>
  left_join(active_teams, by = join_by(name)) |>
  select(teamIDretro, name, primary, secondary)

mlb_colors |>
  head()

# A tibble: 6 × 4
  teamIDretro name                 primary secondary
  <chr>       <chr>                <chr>   <chr>
1 ARI         Arizona Diamondbacks #a71930 #000000
2 ATL         Atlanta Braves       #ce1141 #13274f
3 BAL         Baltimore Orioles    #df4601 #000000
4 BOS         Boston Red Sox       #bd3039 #0d2b56
5 CHN         Chicago Cubs         #cc3433 #0e3386
6 CHA         Chicago White Sox    #000000 #c4ced4

Create color palette

mlb_pal <- mlb_colors |>
  pull(primary) |>
  setNames(mlb_colors$teamIDretro)

mlb_pal

      ARI       ATL       BAL       BOS       CHN       CHA       CIN       CLE
"#a71930" "#ce1141" "#df4601" "#bd3039" "#cc3433" "#000000" "#c6011f" "#e31937"
      COL       DET       HOU       KCA       ANA       LAN       MIA       MIL
"#333366" "#0c2c56" "#002d62" "#004687" "#ba0021" "#005a9c" "#ff6600" "#0a2351"
      MIN       NYN       NYA       OAK       PHI       PIT       SDN       SFN
"#002b5c" "#ff5910" "#003087" "#003831" "#284898" "#fdb827" "#002d62" "#fd5a1e"
      SEA       SLN       TBA       TEX       TOR       WAS
"#0c2c56" "#c41e3a" "#092c5c" "#c0111f" "#134a8e" "#ab0003"

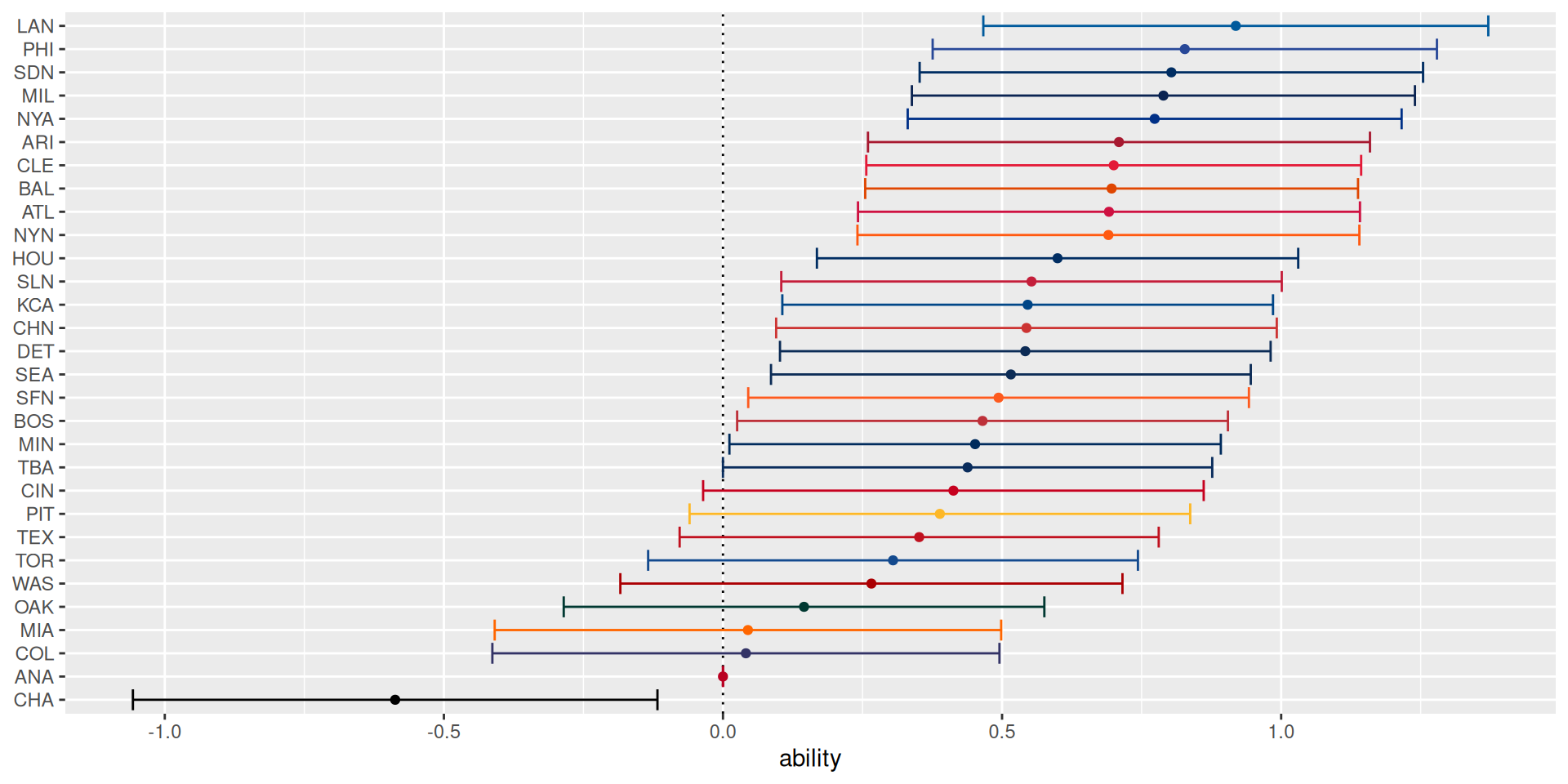

Visualize plot with team colors!

mlb_plot +
  scale_color_manual(values = mlb_pal)

Collect standings

home <- bt_games |>
  group_by(teamID = HmTm) |>
  summarize(W = sum(home_w), L = sum(away_w))
away <- bt_games |>
  group_by(teamID = VisTm) |>
  summarize(W = sum(away_w), L = sum(home_w))
teams <- bind_rows(home, away) |>
  group_by(teamID) |>
  summarize(W = sum(W), L = sum(L)) |>
  mutate(wpct = W / (W + L)) |>
  left_join(strengths, by = join_by(teamID))
teams

# A tibble: 30 × 6
   teamID     W     L  wpct ability     s.e.
   <chr>  <int> <int> <dbl> <BTabilts>  <BTabilts>
 1 ANA       63    99 0.389  0.00000000 0.0000000
 2 ARI       89    73 0.549  0.70941360 0.2294201
 3 ATL       89    73 0.549  0.69153014 0.2294049
 4 BAL       91    71 0.562  0.69628592 0.2252221
 5 BOS       81    81 0.5    0.46502311 0.2243069
 6 CHA       41   121 0.253 -0.58724852 0.2397303
 7 CHN       83    79 0.512  0.54370015 0.2287967
 8 CIN       77    85 0.475  0.41283278 0.2287729
 9 CLE       92    69 0.571  0.70002125 0.2261616
10 COL       61   101 0.377  0.04109128 0.2317572
# ℹ 20 more rows

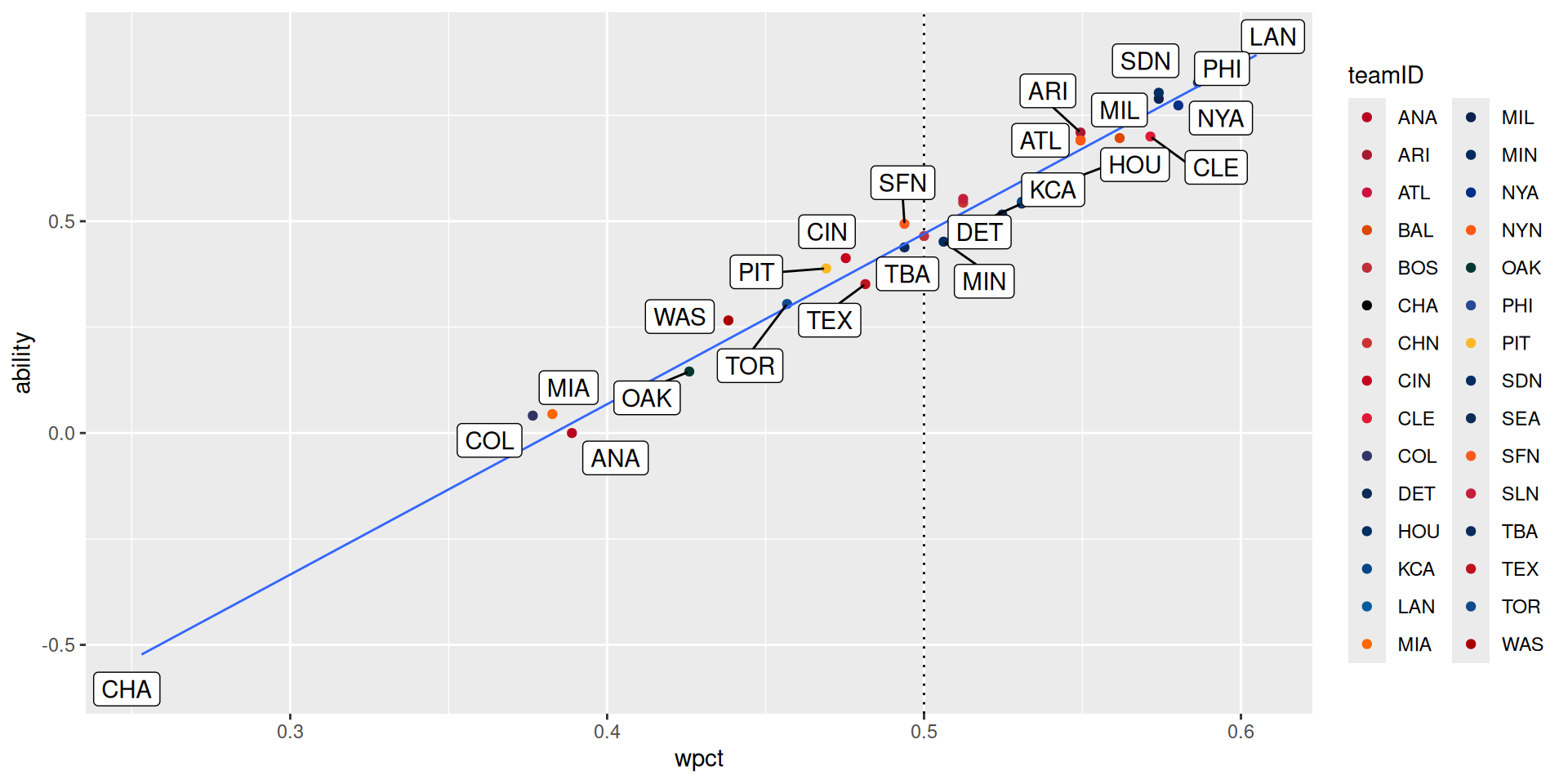

Compare to winning percentage

ggplot(teams, aes(x = wpct, y = ability)) +
  geom_vline(xintercept = 0.5, linetype = 3) +
  geom_point(aes(color = teamID)) +
  geom_smooth(method = "lm", se = FALSE, linewidth = 0.5) +
  ggrepel::geom_label_repel(aes(label = teamID)) +
  scale_color_manual(values = mlb_pal)

Add home field advantage

Update model

bt_games2 <- bt_games |>
  mutate(
    HmTm = data.frame(team = HmTm, at_home = 1),
    VisTm = data.frame(team = VisTm, at_home = 0)
  )

btm2 <- btm_mlb |>
  update(formula = ~ team + at_home, data = bt_games2)
btm2

Bradley Terry model fit by glm.fit

Call:  BTm(outcome = cbind(home_w, away_w), player1 = HmTm, player2 = VisTm,
    formula = ~team + at_home, id = "team", data = bt_games2)

Coefficients:
 teamARI   teamATL   teamBAL   teamBOS   teamCHA   teamCHN   teamCIN   teamCLE
 0.71120   0.69189   0.69644   0.46507  -0.58941   0.54440   0.41282   0.70089
 teamCOL   teamDET   teamHOU   teamKCA   teamLAN   teamMIA   teamMIL   teamMIN
 0.04089   0.54217   0.59957   0.54641   0.91924   0.04430   0.79029   0.45229
 teamNYA   teamNYN   teamOAK   teamPHI   teamPIT   teamSDN   teamSEA   teamSFN
 0.77469   0.69055   0.14453   0.82886   0.38841   0.80478   0.51603   0.49465
 teamSLN   teamTBA   teamTEX   teamTOR   teamWAS   at_home
 0.55351   0.43829   0.35138   0.30462   0.26562   0.09057

Degrees of Freedom: 660 Total (i.e. Null);  630 Residual
Null Deviance:      823.3
Residual Deviance: 709.4    AIC: 1701

Collect abilities

strengths_ha <- btm2 |>
  BradleyTerry2::BTabilities() |>
  as_tibble(rownames = "teamID") |>
  arrange(desc(ability))

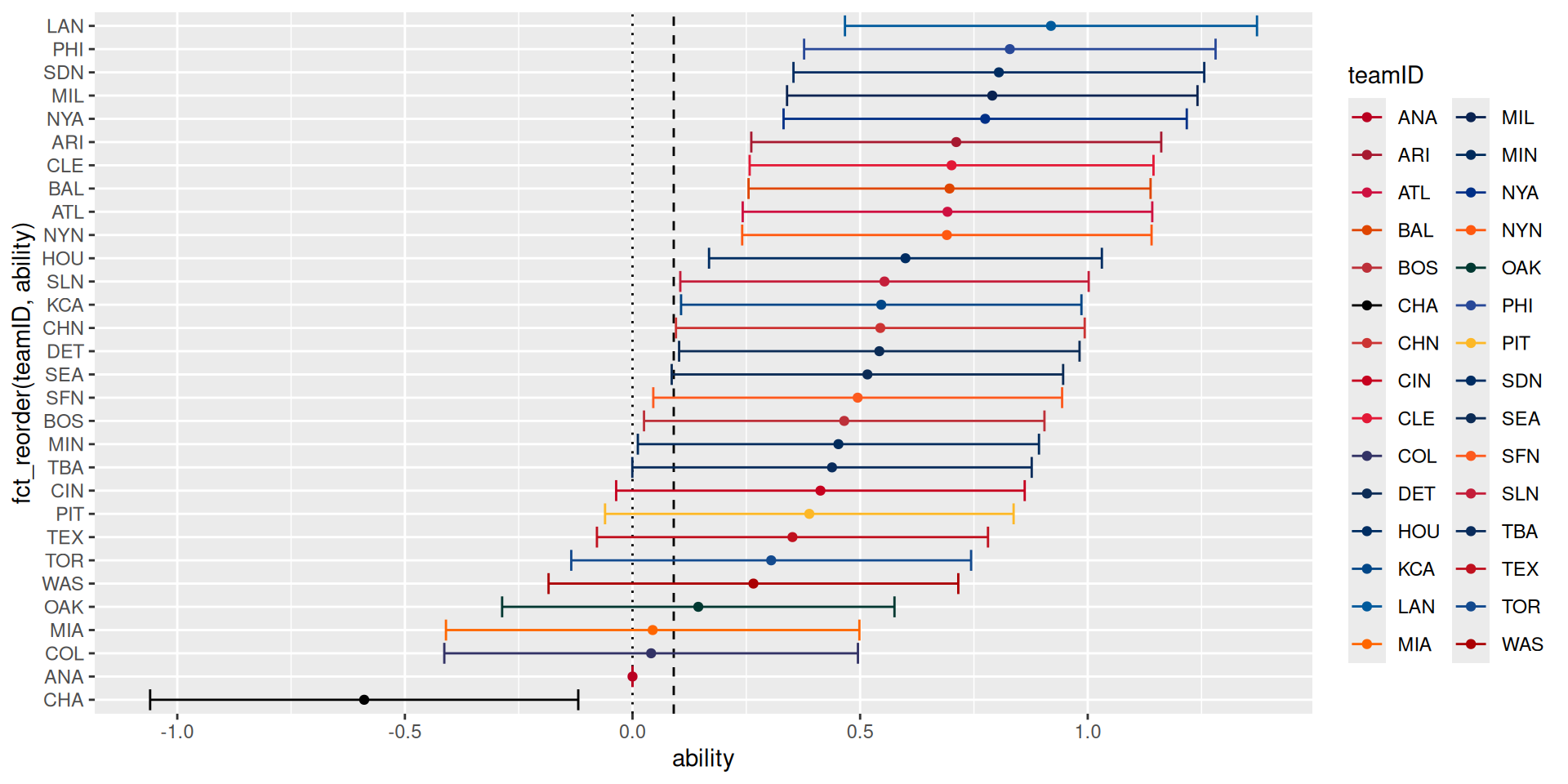

Visualize team strengths

References

Bradley, Ralph Allan, and Milton E. Terry. 1952. “Rank Analysis of Incomplete Block Designs: I. The Method of Paired Comparisons.” Biometrika 39 (3/4): 324–45. https://doi.org/10.2307/2334029.

Elo, A. E. 1978. The Rating of Chessplayers, Past and Present. New York: Arco Publishing.

Lopez, Michael J, Gregory J Matthews, and Benjamin S Baumer. 2018. “How Often Does the Best Team Win? A Unified Approach to Understanding Randomness in North American Sport.” The Annals of Applied Statistics 12 (4): 2483–2516. https://doi.org/10.1214/18-aoas1165.

Bradley-Terry models

Paired comparison models

Bradley and Terry (1952)

Use logistic distribution

Convert to odds

Setup design matrix

BradleyTerry2

Example: Men’s tennis

Head-to-head matchups

Fit the model

Recover abilities

Visualize abilities

Example: MLB teams

Get Retrosheet data

Refactor to matchup format

Fit the model

Wrangle team strengths

Visualize team strengths

Consolidate team names

Match teamIDs to get colors

Create color palette

Visualize plot with team colors!

Collect standings

Compare to winning percentage

Add home field advantage

Update model

Collect abilities

Visualize team strengths

Read more!

References

`BradleyTerry2`
